Golden Tag Resources (TSX.V: GOG) (OTCQB: GTAGF) has released complete results from diamond drill holes 21-62 and 22-63, which are part of the continuing exploration program at the company's 100-per-cent-owned San Diego project, located in Durango, Mexico.
Key highlights from holes 21-62 & 22-63 include:
- High-grade intersection of 1,095 g/t AgEq over 0.6 metres ("m") within the CSplay Zone, located ~ 75 m SW and 75 m vertically below similar results as published on February 15, 2022. The CSplay Zone has a minimum vertical strike length of 300 m and follow up drilling is being planned.
- 541 g/t AgEq over 1.66 m, within a broader interval of 166 g/t AgEq over 10.15 m, in the Canta Zone.
- Several other high-grade intersections, located close to surface, including 244 g/t AgEq over 1.75 m, 182 g/t AgEq over 2.00 m, 504 g/t AgEq over 1.20 m, and 295 g/t AgEq over 2.10 m.
Greg McKenzie, president and chief executive officer, commented: "The two holes reported today showcase how the San Diego Project can deliver exceptionally high-grade mineralization, relatively close to surface. During Q1/22 we have now reported a total of four high-grade intersections each in excess of 1,000 g/t AgEq, from within the CSplay Zone which has a known vertical strike of length of 300 m. We are also pleased with the additional high-grade results within the Montanez and the 57 Target area."
Holes 21-62 and 22-63
Holes 21-62 and 22-63 were drilled at a shallow dip (-45 degrees) to test an area north of the 57 Target, a series of epithermal breccias and quartz-carbonate vein mineralization which returned 72 g/t AgEq over 273.7 m, including 861 g/t AgEq over 10.0 m, as previously reported in news releases dated September 8 and May 27, 2021 discussing hole 21-57 (see Figure 1). Mineralization within the 57 Target is a complex interplay of several vein trends proximal to the southern contact of the Central Diorite, notably late-stage northeast trending epithermal veins intersecting with the west-northwest trending San Jose Zone system of quartz-sulfide veins with associated albite alteration. The Company is currently following up with detail surface mapping to better understand the geometry of the 57 Target mineralization.

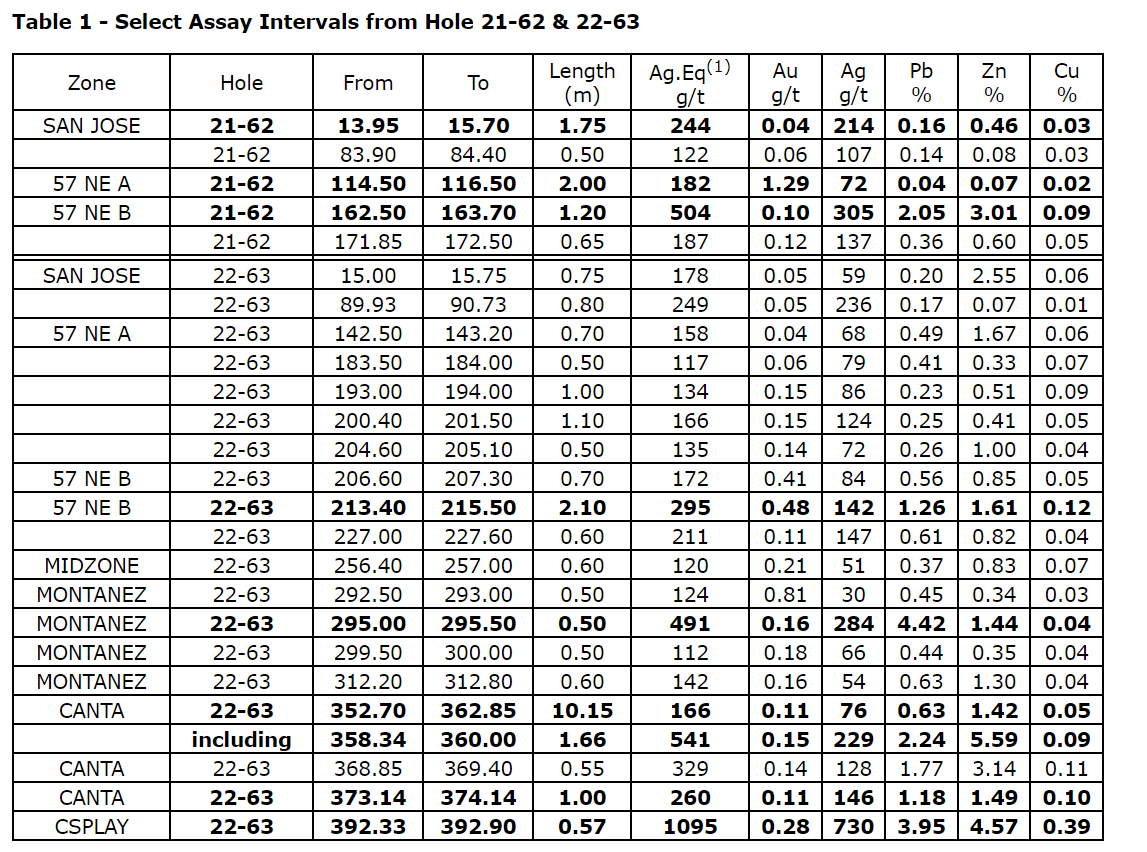

The San Jose Zone was intersected at the top of both holes with hole 21-62 returning 244 g/t AgEq over 1.75 m (13.95 to 15.70 m) and hole 22-63 returning 178 g/t AgEq over 0.75 m (15.00 to 15.75 m). Several northeast trending epithermal quartz-carbonate-sulfide veins were intersected within the Central Diorite in both holes. The most notable of these intersections was within Zone 57 NE B which returned 504 g/t AgEq over 1.20 m (162.50 to 163.70 m) in hole 21-62 and 295 g/t AgEq over 2.10 m (213.40 to 215.50 m) in hole 22-63. Zone 57 NE A returned 182 g/t AgEq over 2.0 m (114.50 to 116.50 m) in hole 21-62 and 158 g/t AgEq over 0.70 m (142.50 to 143.20 m) in hole 22-63. Zone 57 NE A can be traced over a minimum strike length of approximately 50 m and Zone 57 NE B can be traced over a minimum strike length of approximately 75 m and is expected to merge into the 57 Target.
Hole 22-63 was extended to cut across the Montanez, Canta and CSplay Zones. The Montanez Zone appears to split into several veins at its western extent within the Central Diorite, with the best intersection within the zone returning 491 g/t AgEq over 0.5 m (295.00 to 295.50 m). Further downhole, several mineralized veins within the east-west trending Canta Zone coalesced into an intersection which returned 541 g/t AgEq over 1.66 m (358.34 to 360.00 m) within a broader interval of 166 g/t AgEq over 10.15 m (352.70 to 362.85 m). This intersection is located approximately 100 m west of the Canta intersections from holes 21-61A & 61W1, which included 388 g/t AgEq over 2.1 m, as previously reported on February 15, 2022. The Canta Zone can be traced over a minimum strike length of 375 m on property.
The northeast trending CSplay Zone was cut deeper downhole in hole 22-63 returning 1095 g/t AgEq over 0.57 m (392.33 to 392.90 m). This CSplay intersection is located approximately 75 m southwest and 75 vertical m below the high-grade results within holes 21-61 & 61A including 1,064 g/t AgEq over 0.5 m, 1,004 g/t AgEq over 1.22 m and 1,110 g/t AgEq over 0.65 m, as previously reported on February 15, 2022. The CSplay Zone can be traced over a strike length of 300 m on the property.
Sample Analysis and QA/QC Program
Golden Tag Resources uses a quality assurance/quality control (QA/QC) program that monitors the chain of custody of samples and includes the insertion of blanks, duplicates, and reference standards in each batch of samples sent for analysis. Drill core is photographed, logged, and cut in half with one half retained in a secured location for verification purposes and one half shipped for analysis. Sample preparation (crushing and pulverizing) is performed at ALS Geochemistry, an independent ISO 9001:2001 certified laboratory, in Zacatecas, Mexico and pulps are sent to ALS Geochemistry in Vancouver, Canada for analyses. The entire sample is crushed to 70% passing -2 mm and a riffle split of 250 grams is taken and pulverized to better than 85% passing 75 microns. Samples are analyzed for gold using a standard fire assay with Atomic Absorption Spectrometry (AAS) (Au-AA23) from a 30-gram pulp. Gold assays greater than 10 g/t are re-analyzed on a 30-gram pulp by fire assay with a gravimetric finish (Au-GRA21). Samples are also analyzed using a 35 element inductively coupled plasma (ICP) method with atomic emission spectroscopy (AES) on a pulp digested by aqua regia (ME-ICP41). Overlimit sample values for silver (>100 g/t), lead (>1%), zinc (>1%), and copper (>1%) are re-assayed using a four-acid digestion overlimit method with ICP-AES (ME-OG62). For silver values greater than 1,500 g/t samples are re-assayed using a fire assay with gravimetric finish on a 30-gram pulp (Ag-GRA21). No QA/QC issues were noted with the results reported herein.
